Electric Ackermann Wheeled Chassis

Dulmarka alaabta

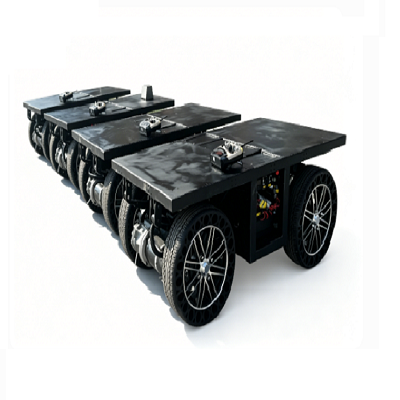

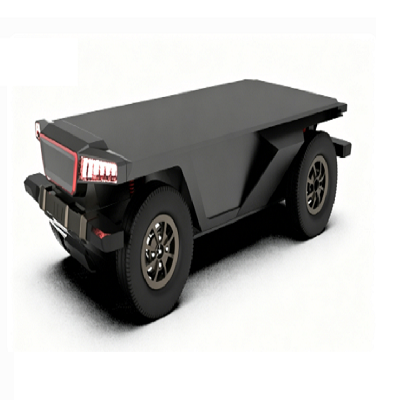

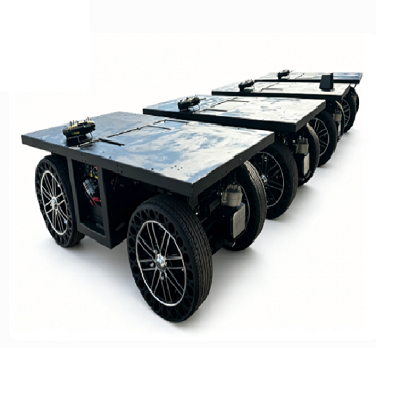

WD-W3-2200H Electric Ackermann Wheeled Chassis waa qalab koronto oo culus oo aan cidi wadin oo loogu talagalay xaaladaha shaqada dibadda ee culeyska dhexdhexaadka ah. Waxay isticmaashaa Ackermann hore oo bislaaday qaab dhismeedka isteerinka afarta taayir leh oo lagu lammaaniyay dabada kaxaynta adag ee kala duwan, isku darka waxqabadka isteerinka dabacsan iyo awooda culeyska xoogan si ay ula qabsato jawiyada adag ee dibadda.

Qiyaasta Farsamada

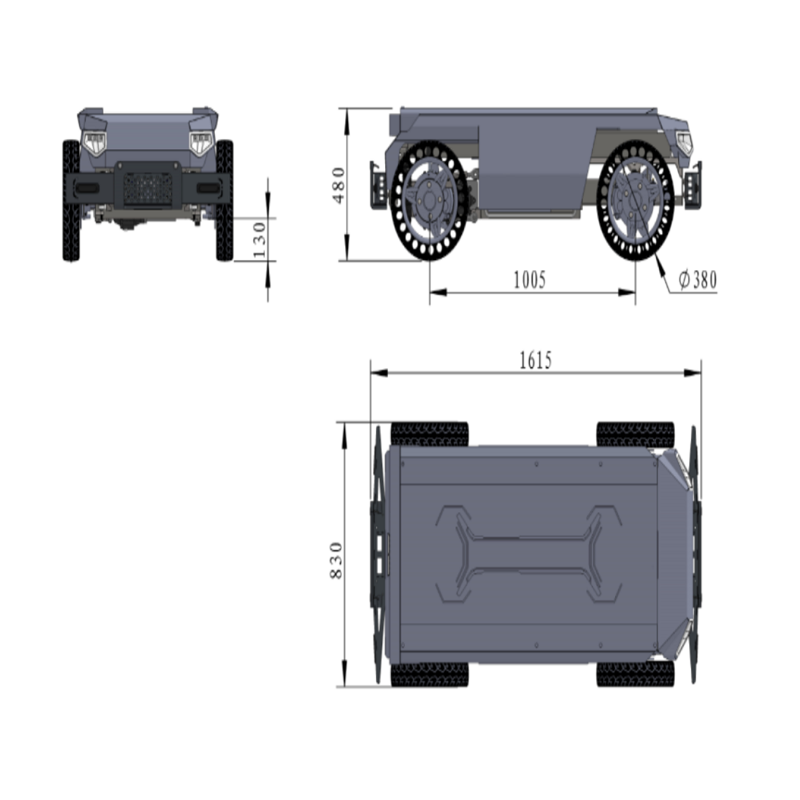

Guud ahaan Cabbirka Naqshadda: 1615*830*480mm

Cabbirka qolka madhan ee gudaha: 1250*435*100mm

Miisaanka Nafta Chassis: 160kg

Culays Naqshad La Qiimeeyay: 300kg

Xawaaraha Orodka: 0-21km/h

Wareegga Wareegga: 2.5m

Baaxadda dhulka: 130mm

Heerka ilaalinta: IP54

Xagasha sareynta ugu badan: 10°

Dhererka ugu sarreeya ee Caqabadda: 120mm

FAQ

Q1: Korantada Ackermann chassis ma taageeri kartaa horumarinta dugsiga sare?

J: Haa. Darawalka buraash la'aanta ah wuxuu kaydiyaa is-gaarsiinta isgaarsiineed ee CAN/RS485 oo dhammaystiran, oo ku habboon ROS, kombuyuutarrada warshadaha iyo nidaamyada kontoroolka socodka caadiga ah.

A: heerka ilaalinta IP54, adkaysi u leh boodhka iyo biyaha daadinta; ku habboon roondo dibadda ah oo maalinta oo dhan ah, oo aan ahayn dhexgalka biyaha muddada-dheer.

Q3: Chassis-ka korontodu ma leeyahay biriiga baarkinka ee baarkinka jiirada?

J: Waxaa lagu qalabeeyay nidaamka hore ee durbaanka gadaale dual brake oo leh bareeg baarkin oo madax banaan, isagoo si wax ku ool ah uga hortagaya ku sibixitaanka jiirada 300kg oo buuxa.
